Installing Tunnelblick



Step 1. You will first need to download the Tunnelblick bundle. Click here


Step 2. Click and run the application on your OS and follow the steps to install.





Step 3. Once you have installed the Viscosity program, you will need to download the VPN configurations file for the Firewall. To do this click here.



Configuring Viscosity



Once you have download Tunnelblick configuration file from the firewall, you will now be able to add the configuration file to Tunnelblick.


Step 1. Open Tunnelblick, this will open in your notifications bar.




Step 2. Click on the Tunnelblick icon and click VPN Details...





Step 3. Once Tunnelblick has opened, download the configurations file from the firewall.

             The configurations file that needs to be download is under `Standard Configurations`, the file is called `Archive`

             The Archive file will include the .ovpn file as well as the cert and key.


The file will then download.

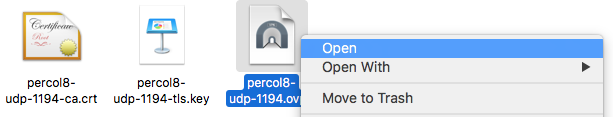

Step4. To add the configurations file to Tunnelblick, Unzip the configurations file, right click on the .ovpn file and open with Tunnelblick.



Step 5. Click `Only Me`





Step 6. The VPN will now be configured to Tunnelblick. You will now be able to connect to the VPN.
